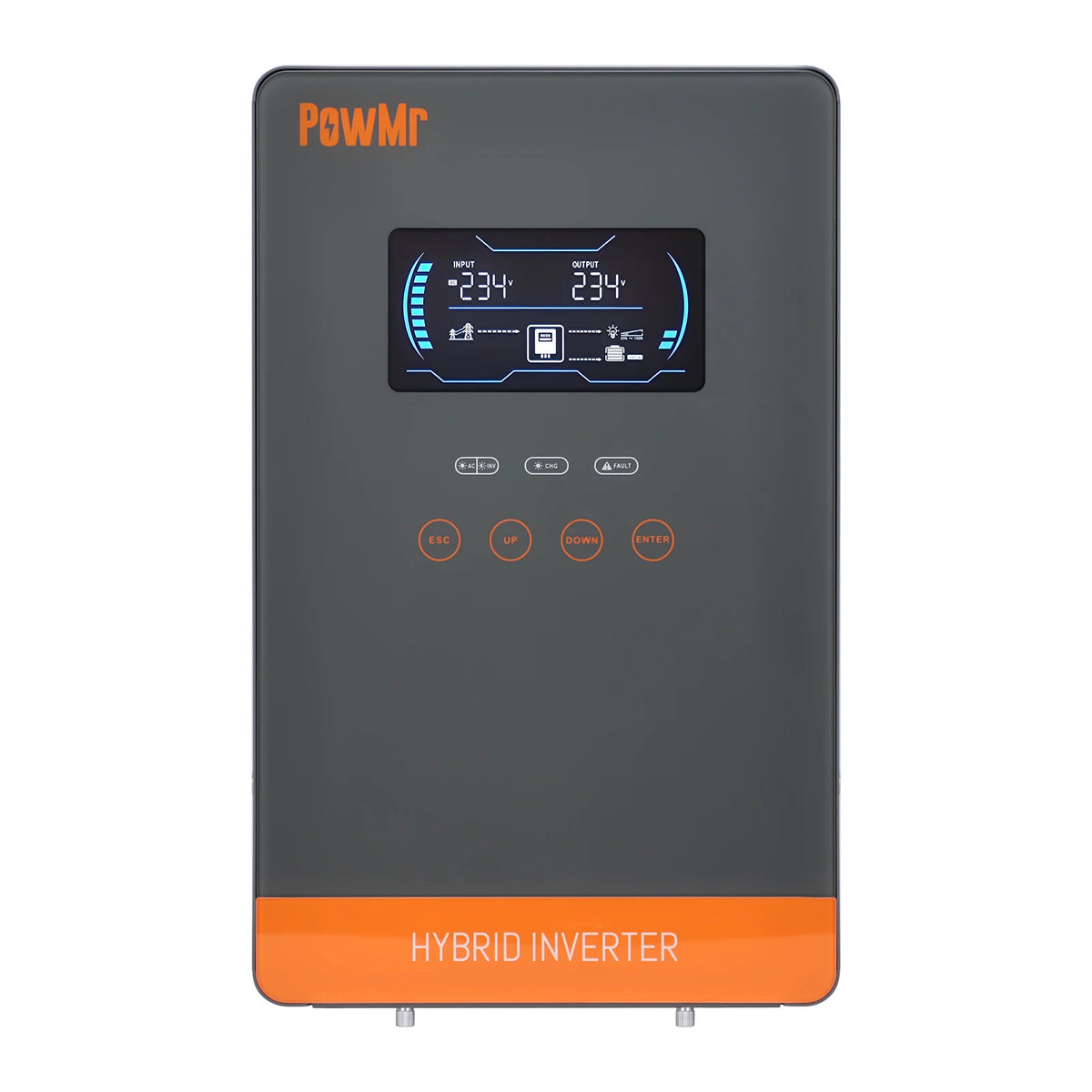

PowMr 4KW Off Grid Solar Inverter With MPPT Charger
PowMr 4KW Off Grid Solar Inverter With MPPT Charger
Couldn't load pickup availability

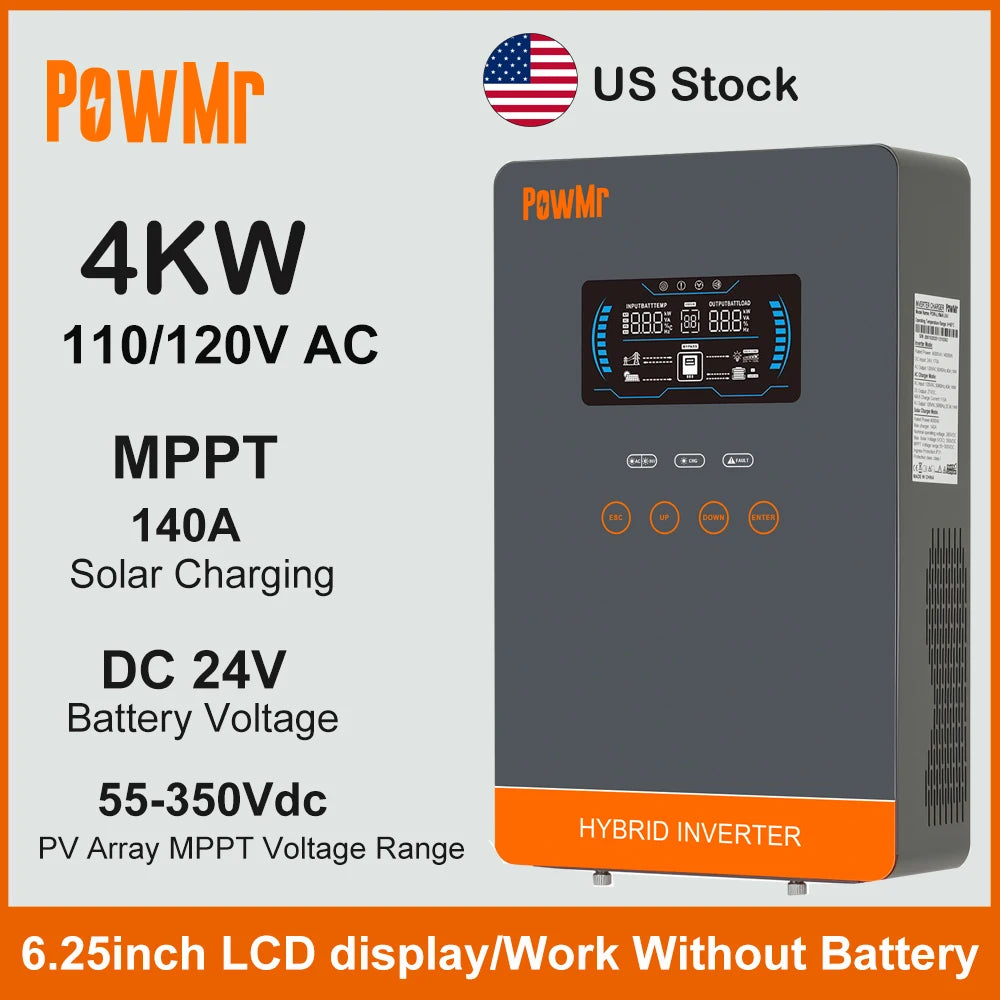

Build a flexible off-grid power setup with a 4kW inverter that combines solar, utility, and battery power—and can run without a battery.
- Solar charging: The built-in 140A MPPT controller supports up to 5,600W of PV input across a 55–350Vdc MPPT range.
- Pure sine wave output: Get 120Vac output at 4kW, with 50/60Hz frequency and a 24Vdc battery input; battery mode allows 100V, 110V, or 120V AC selection.
- Custom power priorities: Select Only Solar, Solar First, or Mains & Solar charging, plus SBU or SUB output mode to suit your setup.
- Clear controls and protection: Use the 6.25-inch LCD and touch buttons to adjust settings, while overload, overtemperature, and output short-circuit protection help safeguard operation. Wi-Fi monitoring is optional.
INVERTER MODEL |
4KW/24V |
Input Voltage Waveform |
Sinusoidal (utility or generator) |
Nominal Input Voltage |
120Vac |
Max AC Input Voltage |
150Vac |
Nominal Input Frequency |
50Hz / 60Hz (It can be set in program 09) |
Output Short Circuit Protection |
Line mode: Circuit Breaker; Battery mode: Electronic Circuits |
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged) |
Transfer Time |
10ms typical (UPS); |
Rated Output Power |
4kW |
Output Voltage Waveform |
Pure Sine Wave |
Output Voltage Regulation |
120Vac±5% |
Output Frequency |
60Hz or 50Hz |
Peak Efficiency |
94% |
Surge Capacity |
2* rated power for 5 seconds |
Nominal DC Input Voltage |
24Vdc |
Cold Start Voltage |
23.0Vdc |
Low DC Cut-off Voltage |
21.0Vdc |
High DC Cut-off Voltage |
31Vdc |
No Load Power Consumption |
<35W |
Utility Charging Mode | |
Charging Current (UPS) |
110A |
Floating Charging Voltage |
27Vdc |
Charging Algorithm |
3-Step |
Solar Charging Mode | |
Rated Power |
5600w |
PV Charge Current |
140A |
Efficiency |
98.0% max. |
Max. PV Array Open Circuit Voltage |
350Vdc |
PV Array MPPT Voltage Range |
55-350Vdc |
Standby Power Consumption |
2W |
Charging Algorithm |
3-Step |
General Specifications | |
Operating Temperature Range |
0°C to 55°C |
Storage temperature |
-15°C to 60°C |
